BEKO DRYPOINT® XCe

• Standard outlet pressure dew point: -40 °F
• Optional outlet pressure dew point: -100 °F
• Electrical power supply: 120 - 240 VAC | 50 - 60Hz
• Required pre-filtration grade SX: .01 μm | Required post-filtration grade FX: 1 μm
• UL / CSA certified
• NEMA 4 indoor rated controls
• ASME / CRN coded vessels
• Min. / max. inlet air temperature: 40 °F / 120 °F
• Min. / max. operating pressure: 60 / 150 psig

Maintenance Interval:   < 8,000 hours
• Maintenance Kits & Spare Parts

Click Here for Correction Factor Charts


Operating Pressure (psig) 60 70 80 90 100 110 120 130 140 150
Correction Factor .65 .74 .83 .91 1.00 1.12 1.16 1.20 1.25 1.29

Inlet Air Temperature °F 90 95 100 105 110 115 120
Correction Factor 1.07 1.04 1.00 .86 .73 .64 .55
The correction factors on this page provide an estimation of the performance that can be achieved with the model sizes shown. For precise sizing for your application, please contact your MDI sales representative.
*Scroll to the right on mobile to see entire chart
  Quantity Add to
Quote		 DRYPOINT® XCe
Connection Size (NPT)
Flow Rate (scfm)
W/O Filters
XCe 80
¾"
80
4026930
XCe100
1"
100
4026931
XCe 120
1"
120
4026932
XCe 160
1¼"
160
4026933
XCe 200
1¼"
200
4026934
XCe 250
1½"
250
4026935
XCe 300
1½"
300
4026936
XCe 400
2"
400
4026937
XCe 500
2"
500
4026938
XCe 650
2½"
650
4026939
XCe 800
2½"
800
4026940
  Quantity Add to
Quote		 DRYPOINT® XCe
Connection Size (NPT)
Flow Rate (scfm)
W/ Mounted Filters
XCe 80
¾"
80
4027010
XCe100
1"
100
4027011
XCe 120
1"
120
4027012
XCe 160
1¼"
160
4027013
XCe 200
1¼"
200
4027014
XCe 250
1½"
250
4027015
XCe 300
1½"
300
4027016
XCe 400
2"
400
4027017
XCe 500
2"
500
4027018
XCe 650
2½"
650
4027019
XCe 800
2½"
800
4027020



*Scroll to the right on mobile to see entire chart
REQUIRED FILTRATION (SHIPPED LOOSE, NOT MOUNTED)
Pre-Filter | .01 μm
Post-Filter | 1 μm
XCe 80
S075SDF
S075RFWM
XCe100
S100SDF
S100RFWM
XCe 120
S100SDF
S100RFWM
XCe 160
M010SDF
M010RFWM
XCe 200
M012SDF
M012RFWM
XCe 250
M015SDF
M015RFWM
XCe 300
M018SDF
M018RFWM
XCe 400
M020SDF
M020RFWM
XCe 500
M020SDF
M020RFWM
XCe 650
M025SDF
M025RFWM
XCe 800
M025SDF
M025RFWM



For more options, Please consult your MDI sales representative.


*Scroll to the right on mobile to see entire chart
OPTIONAL EQUIPMENT
Order Ref.
Drain Upgrade to BEKOMAT®
4025098






*Scroll to the right on mobile to see entire chart

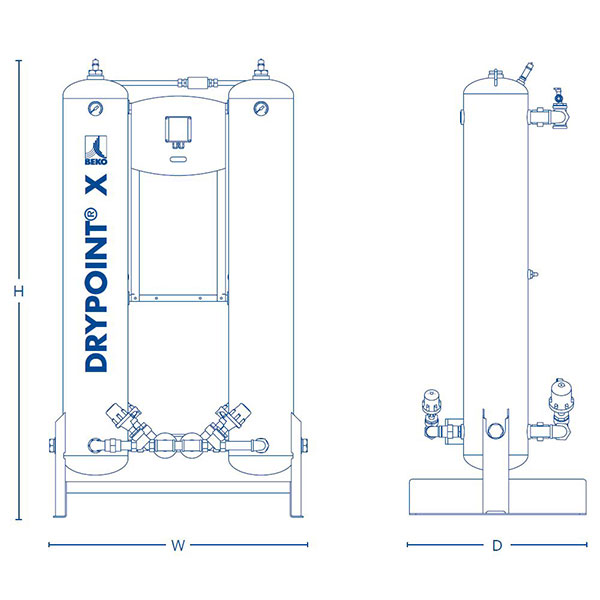

DRYPOINT® XCe
H x W x D (inches)
Ship Weight (lbs)
XCe 80
70 x 31 x 22
235
XCe100
70 x 34 x 24
370
XCe 120
70 x 34 x 24
370
XCe 160
72 x 39 x 27
573
XCe 200
72 x 39 x 27
573
XCe 250
75 x 45 x 32
844
XCe 300
75 x 45 x 32
844
XCe 400
77 x 51 x 36
1,188
XCe 500
79 x 54 x 38
1,560
XCe 650
82 x 62 x 41
1,991
XCe 800
81 x 63 x 44
2,384
