BEKO CLEARPOINT® Flange Water Separators

with BEKOMAT® and connection kit

• Removal of large quantities of condensate
• Used downstream of aftercoolers
• BEKOMAT® drain as standard
• Designed according to ASME Sec. VII, Div. 1
• UM stamp standard and CRN optional
• Max. operating pressure: 232 psig
• Max. operating temperature: 140 °F

Maintenance Interval:   < 8,000 hours

Click Here for Correction Factor Charts


Operating Pressure psig 20 40 60 80 90 100 110 120 130 140 160 180 200 230
Correction Factor .30 .48 .65 .82 .91 1.00 1.09 1.17 1.26 1.35 1.52 1.70 1.87 2.13
The correction factors on this page provide an estimation of the performance that can be achieved with the model sizes shown. For precise sizing for your application, please contact your MDI sales representative.
*Scroll to the right on mobile to see entire chart
ELEMENT GRADE
ELEMENT TYPE
Δ PRESSURE (psid)
REMOVAL RATE
Grade W
Water Separator
.87
99.0%

*Scroll to the right on mobile to see entire chart
CLEARPOINT® Pipe Size (ANSI) Flow Rate (scfm) Separator Size Order Ref.
L100 4" 1900 88W L100WWB
L102 4" 2800 88W L102WWB
L150 6" 3800 88W L150WWB
L156 6" 6500 88W L156WWB
L200 8" 7500 88W L200WWB
L204 8" 9300 88W L204WWB
L254 10" 13000 88W L254WWB
L304 12" 21000 88W L304WWB



• CLEARPOINT Accessories
For more options, Please consult your MDI sales representative.





*Scroll to the right on mobile to see entire chart

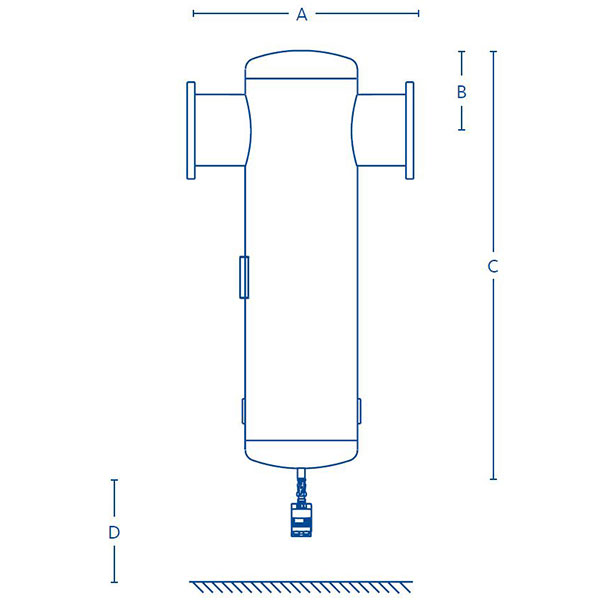

CLEARPOINT® A (inches) B (inches) C (inches) D (inches) Weight (lbs)
L100 15.75 6.96 34.25 12.40 150
L102 18.75 7.75 37.25 18.90 230
L150 19.10 7.80 50.24 18.90 294
L156 21.13 9.75 52.63 18.50 350
L200 22.81 12.38 64.50 18.31 500
L204 24.80 11.34 66.93 17.72 562
L254 29.53 13.07 81.50 17.72 653
L304 34.25 14.57 95.28 16.93 741
