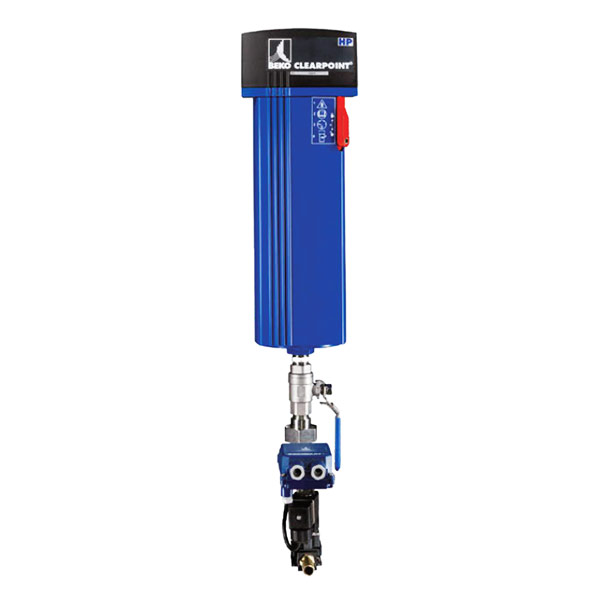

BEKO CLEARPOINT® PN50 Threaded High Pressure Water Separators

with open port or with BEKOMAT® connection kit (drain sold separately) without pressure gauge

• Removal of large quantities of condensate
• Used downstream of aftercooler
• Max. operating temperature: 140 °F
• Max. operating pressure: 725 psig

Maintenance Interval:   < 8,000 hours

Click Here for Correction Factor Charts


Operating Pressure psig 60 90 100 150 200 300 450 600 725
Correction Factor .14 .18 .24 .35 .43 .59 .73 .88 1.00
The correction factors on this page provide an estimation of the performance that can be achieved with the model sizes shown. For precise sizing for your application, please contact your MDI sales representative.
*Scroll to the right on mobile to see entire chart
ELEMENT GRADE
ELEMENT TYPE
Δ PRESSURE (psid)
REMOVAL RATE
Grade W
Water Separator
.87
99.0%

*Scroll to the right on mobile to see entire chart
  Quantity Add to
Quote		 CLEARPOINT® PN50 Pipe Size (NPT) Flow Rate (scfm) Separator Size Open Port
Order Ref.
HP50S040 ⅜" 100 04W HP50S040WWC
HP50S050 ½" 190 05W HP50S050WWC
HP50S075 ¾" 440 07W HP50S075WWC
HP50M010 1" 600 10W HP50M010WWC
HP50M015 1½" 1000 15W HP50M015WWC
HP50M020 2" 1720 20W HP50M020WWC
  Quantity Add to
Quote		 CLEARPOINT® PN50 Pipe Size (NPT) Flow Rate (scfm) Separator Size W/ Connection Kit
Order Ref.
HP50S040 ⅜" 100 04W HP50S040WWP
HP50S050 ½" 190 05W HP50S050WWP
HP50S075 ¾" 440 07W HP50S075WWP
HP50M010 1" 600 10W HP50M010WWP
HP50M015 1½" 1000 15W HP50M015WWP
HP50M020 2" 1720 20W HP50M020WWP
Pre-Filter Shipped Loose, not mounted


• CLEARPOINT Accessories
For more options, Please consult your MDI sales representative.





*Scroll to the right on mobile to see entire chart
CLEARPOINT® A (inches) C1 (inches) C2 (inches) D (inches) Weight (lbs)
HP50S040 2.95 7.10 16.50 7.10 1.65
HP50S050 2.95 8.30 16.50 7.10 1.85
HP50S075 3.95 11.00 20.50 7.10 3.75
HP50M010 3.95 13.80 23.20 7.10 4.63
HP50M015 5.75 14.40 23.80 7.10 9.04
HP50M020 5.75 18.40 27.80 7.10 11.24
