BEKO CLEARPOINT® HP High Pressure Filters

with open port without pressure gauge

• Stainless steel housing
• Max. operating temperature: 140 °F (HP350S075 and HP350M010 only)
• Max. operating temperature: 248 °F (all other models)
• Max. inlet pressure: 1,450 - 7,250 psig

Maintenance Interval:   < 8,000 hours

Click Here for Correction Factor Charts


Operating Pressure (1,450 psig) 300 450 600 725 900 1,100 1,200 1,300 1,450
Correction Factor .45 .56 .64 .71 .78 .84 .90 .95 1.00

Operating Pressure (5,075 psig) 3,000 3,600 4,500 5,075
Correction Factor .84 .89 .94 1.00

Operating Pressure (7,250 psig) 4,500 5,000 5,800 6,500 7,250
Correction Factor .89 .93 .96 .98 1.00
The correction factors on this page provide an estimation of the performance that can be achieved with the model sizes shown. For precise sizing for your application, please contact your MDI sales representative.
*Scroll to the right on mobile to see entire chart
ELEMENT
GRADE
ELEMENT
TYPE
MICRON
RATING
OIL
CARRYOVER
OIL
VAPOR
DRY Δ
PRESSURE (psid)
Grade CX
Coarse
25 μm
5 mg/m3
-
.54
Grade FX
Fine
1 μm
.1 mg/m3
-
.86
Grade SX
Superfine
.01 μm
.01 mg/m3
-
1.04
Grade A
Activated Carbon
.01 μm
-
.003 mg/m3
.70

*Scroll to the right on mobile to see entire chart
  Quantity Add to
Quote		 CLEARPOINT® HP 100
Max. Operating Pressure (psig)
Pipe Size (NPT)
Flow Rate (scfm)
W/o Drain Order Ref.
HP100S040
1,450
⅜"
25
HP100S040...WC
HP100S045
1,450
⅜"
60
HP100S045...WC
HP100S050
1,450
½"
160
HP100S050...WC
HP100S055
1,450
½"
270
HP100S055...WC
HP100S075
1,450
¾"
400
HP100S075...WC
HP100M010
1,450
1"
700
HP100M010...WC
HP100M015
1,450
1½"
1000
HP100M015...WC
HP100M020
1,450
2"
2000
HP100M020...WC
Choose an element grade (CX / FX / SX / A) and replace ... with the element grade. For any questions consult an mdi representative.

*Scroll to the right on mobile to see entire chart
  Quantity Add to
Quote		 CLEARPOINT® HP 350
Max. Operating Pressure (psig)
Pipe Size (NPT)
Flow Rate (scfm)
W/o Drain Order Ref.
HP350S030
5,075
¼"
30
HP350S030...WC
HP350S040
5,075
⅜"
75
HP350S040...WC
HP350S045
5,075
⅜"
205
HP350S045...WC
HP350S050
5,075
½"
350
HP350S050...WC
HP350S075
5,075
¾"
520
HP350S075...WC
HP350M010
5,075
1"
920
HP350M010...WC
HP350M012
5,075
1"
1300
HP350M012...WC
HP350M015
5,075
1½"
2600
HP350M015...WC
Choose an element grade (CX / FX / SX / A) and replace ... with the element grade. For any questions consult an mdi representative.

*Scroll to the right on mobile to see entire chart
  Quantity Add to
Quote		 CLEARPOINT® HP 500
Max. Operating Pressure (psig)
Pipe Size (NPT)
Flow Rate (scfm)
W/o Drain Order Ref.
HP500S030
7,250
¼"
30
HP500S030...WC
HP500S040
7,250
⅜"
80
HP500S040...WC
HP500S045
7,250
⅜"
220
HP500S045...WC
HP500S050
7,250
½"
380
HP500S050...WC
Choose an element grade (CX / FX / SX / A) and replace ... with the element grade. For any questions consult an mdi representative.

• CLEARPOINT Accessories
For more options, Please consult your MDI sales representative.





*Scroll to the right on mobile to see entire chart

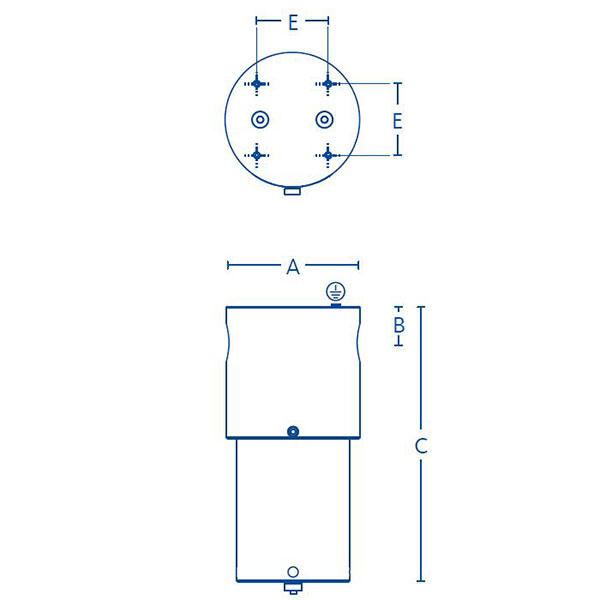

CLEARPOINT® A (inches) B (inches) C (inches) E (inches) Volume (gal) Weight (lbs)
HP100S040 2.36 .65 4.61 .98 .01 4.41
HP100S045 3.11 .81 5.51 1.39 .03 9.92
HP100S050 3.07 .91 8.43 1.57 .10 8.82
HP100S055 3.07 .91 10.39 1.57 .13 12.13
HP100S075 4.49 1.16 10.63 2.36 .32 23.15
HP100M010 4.49 1.16 16.54 2.36 .52 30.20
HP100M015 6.85 1.97 18.94 3.94 .87 74.96
HP100M020 6.85 1.97 30.87 3.94 1.51 92.60
HP350S030 2.36 .65 4.61 .98 .01 4.41
HP350S040 3.11 .81 5.51 1.39 .03 9.92
HP350S045 3.46 .91 8.43 1.57 .10 14.33
HP350S050 3.46 .91 10.39 1.57 .13 16.53
HP350S075 5.47 1.47 11.26 3.15 .30 45.19
HP350M010 5.47 1.47 17.17 3.15 .52 59.52
HP350M012 6.65 1.94 18.90 3.15 .85 99.23
HP350M015 6.65 1.94 30.83 3.15 1.51 156.53
HP500S030 2.36 .65 4.61 .98 .01 4.41
HP500S040 3.11 .81 5.51 1.39 .03 9.92
HP500S045 4.45 .98 8.70 2.36 .10 26.46
HP500S050 4.45 .98 10.67 2.36 .13 28.66
