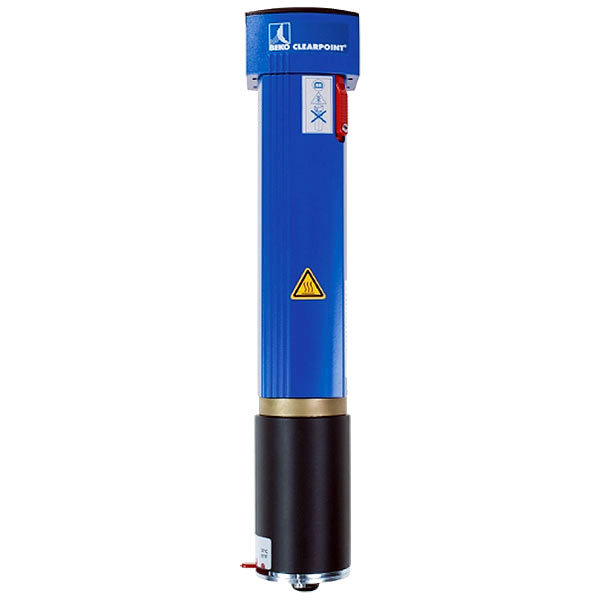

BEKO CLEARPOINT® H Threaded Compressed Air Heaters

in-line compressed air heater with user adjustable temperature

• For the adjustable heating of compressed air
• Adjustable temperature from 86 °F to 140 °F
• Ready for connection with a three-prong plug
• Encapsulated corrosion-free stainless-steel heating cartridges
• Available touch protection option
• Optional 250 VAC / 50 Hz power supply available
• Max. operating pressure: 232 psig

Maintenance Interval:   No Maintenance Required

*Scroll to the right on mobile to see entire chart
CLEARPOINT®
S040
S050
Pipe Size (NPT)
⅜"
½"
Max. Volume Flow at 100 psig
30 scfm
60 scfm
Compressed Air Outlet Temperature Adjustment Range (°F)
86 °F to 140 °F
86 °F to 140 °F
Max. Operating Pressure (psig)
232
232
Pressure Differential
< 2.18 psig
< 2.90 psig
Voltage
115 VAC / 60 Hz +/–10 %
115 VAC / 60 Hz +/–10 %
Inlet Temperature Range (°F)
36 °F to 122 °F
36 °F to 122 °F
Ambient Temperature Range (°F)
36 °F to 122 °F
36 °F to 122 °F
Internal Safety Auto-off Temperature (°F)
183 °F
183 °F
Max. Housing Temperature (°F)
176 °F
176 °F
Max. Compressed Air Outlet Temperature (°F)
140 °F
140 °F
Max. Power Consumption
750
750
Protection Class
IP 54
IP 54
Order Ref.
S040TWC
S050TWC
Add to Quote




• CLEARPOINT Accessories
For more options, Please consult your MDI sales representative.





*Scroll to the right on mobile to see entire chart
CLEARPOINT® S040 S050
Volume (l) 0.42 0.42
Weight (lbs) 5.3 5.3
