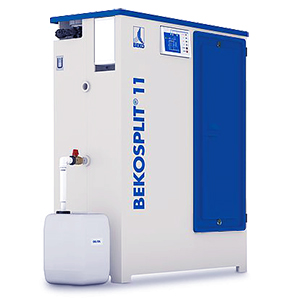

BEKO BEKOSPLIT® 11

• Guaranteed residual oil content below 10 ppm
• Safe for use with stable emulsions
• Max. compressor performance: 7,000 scfm
• Power input: < 100 VA

Maintenance Interval:  2,000 - 8,000 hours
Maintenance Kits

Call us TODAY at 727-835-0670 or
Toll Free at 800-761-4298

Get A Free Quote!
*Scroll to the right on mobile to see entire chart
BEKOSPLIT ®   11
Voltage (VAC) 100-230 VAC
Processing Capacity (gal/h) 4
Special Features integrated
pre-separation tank
& oil collector
Order ref. 4001476
(ES111E005)




*Scroll to the right on mobile to see entire chart
OPTIONAL Optional 2nd Buffer Tank**
Fits All BEKOSPLIT® Models
Tank Capacity (gal)
158
264
Dimensions H x W (inches)
49 x 47
57 x 47
Oil outlet connection
32 mm
Condensate inlet connection
3 x ½"
Max. operating pressure
360 psig
Order ref.
2002549
2002550

**Includes pressure relief chamber, immersion pump with float-switch for pump operation and float-switch “Tank FULL“


• BEKOSPLIT Accessories
For more options, Please consult your MDI sales representative.





*Scroll to the right on mobile to see entire chart

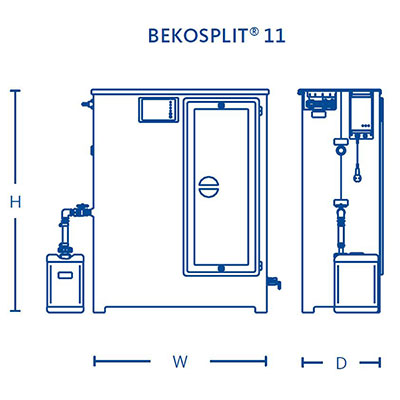

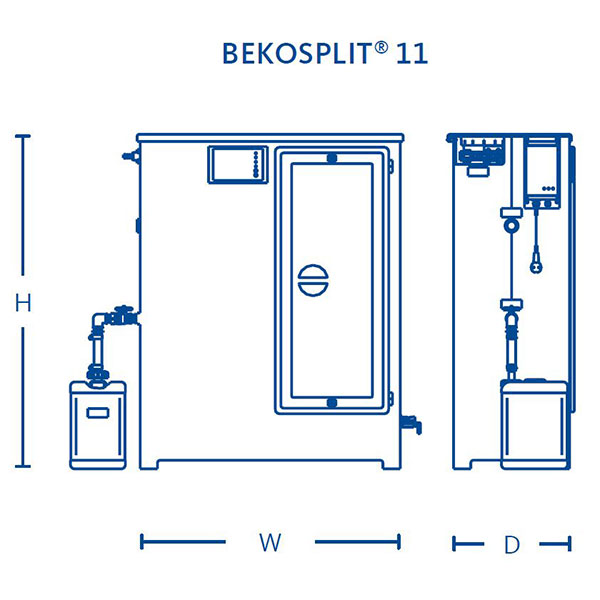

BEKOSPLIT® 11
H x W x D (inches)
Weight (lbs)
11
46 x 35 x 16
106
