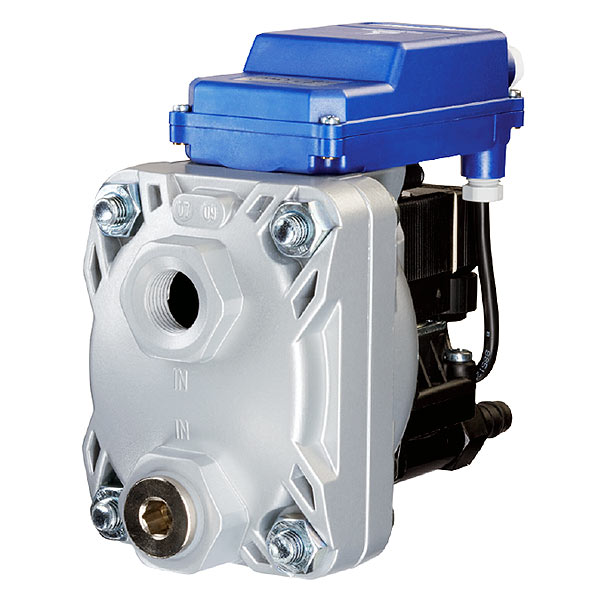

BEKO BEKOMAT 13

• Automatic zero loss drain
• Standard Viton® diaphragm
• UL/CSA approved
• Min. / max. operating temperature: 33 °F / 140 °F
• Standard voltage:
    ○ BEKOMAT® 31-33: 95-240 VAC 50/60 Hz
    ○ BEKOMAT® 13-16: 115 VAC
• Optional voltages:
    ○ BEKOMAT® 31-33: 18 - 72 VDC, 24 - 48 VAC, 100 - 125 VDC
    ○ BEKOMAT® 13-16: 24 VAC/DC, 48 VAC, 230 VAC 50/60 Hz

Maintenance Interval:   < 8,000 hours
Maintenance Kits & Spare Parts

Acceptable Applications:
• Oil and Oil-free Condensate
• Special Gas Condensate (CO model only)
*Scroll to the right on mobile to see entire chart
BEKOMAT® 13 13 CO
Material of Construction Aluminum housing Aluminum housing + hard coating
Connection (NPT) 2 x ½" 2 x ½"
Min. / Max. Pressure (psig) 12 / 232 12 / 232
Compressor Flow Rate (scfm) 1300 1300
Dryer Flow Rate (scfm) 2600 2600
Filter Flow Rate (scfm) 13000 13000
Order ref. 2002944 2002957
