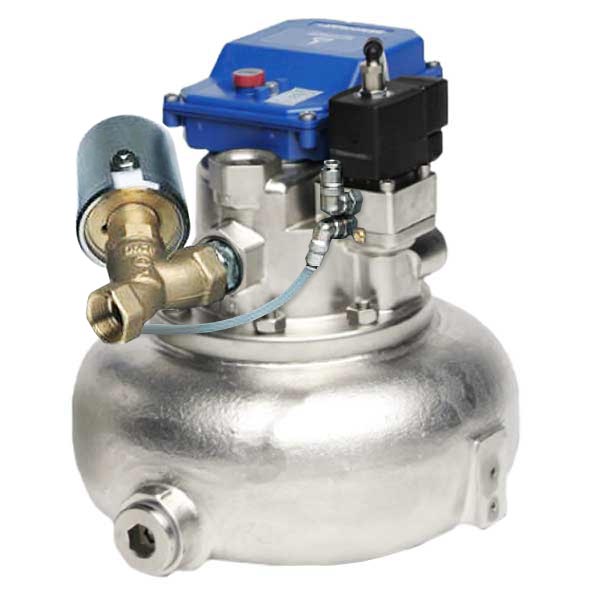

BEKOMAT 6EV Click for Larger View

Call us TODAY at 727-835-0670 or
Toll Free at 800-761-4298

Get A Free Quote!

BEKO BEKOMAT 6EV

• Automatic zero loss drain
• Standard Viton® diaphragm
• Min. / max. operating temperature: 33 °F / 140 °F
• Standard voltage:
    ○ 115 VAC
• Optional voltages:
    ○ 24 VAC/DC, 48 VAC,
    ○ 230 VAC 50/60 Hz

Maintenance Interval:   < 8,000 hours
Maintenance Kits & Spare Parts

Acceptable Applications:
• Oil and Oil-free Condensate
• Special gas Condensate
• Highly Corrosive Condensate
*Scroll to the right on mobile to see entire chart
BEKOMAT® 6EV
Material of Construction Stainless Steel
Connection (NPT) 3 x ¾"
Min. / Max. Pressure (psig) 1.45 / 26
Compressor Flow Rate (scfm) 50000
Dryer Flow Rate (scfm) 100000
Filter Flow Rate (scfm) 500000
Order ref. Upon Request
